S2000 F20c Toda Dry Sump Kit!

The post has been a long time coming. I’ve been super busy with work and life…. not much has changed with the s2k besides bolting on the rear and front subframe with knuckles. Pretty much making it a real roller once I get some wheels. I did some small things along the way, such as installing power flex bushings. I got a whole bunch of goodies I’ve been hoarding over the years to install eventually…

The F20c Toda Dry Sump Kit is something I’ve been eying for years. Literally years… if you look back to posts like this from 2011, I’ve always looked at these parts in envy. A year or so back, someone posted this one for sale, after I found out it is DISCONTINUED, it was a done deal, the hoarder in me couldn’t resist.

The thing about these parts is that there is not much information out there besides the stock photos and description on Toda Racing’s site. I emailed Toda Racing USA and Japan for more information regarding the product, they replied to me saying that they have ZERO documentation. Even the person I bought this from, who bought this brand new told me this did not come with documentation. Kinda crazy when someone spends over $10,000 USD on this brand new and they receive no instructions. No worries, I’m crazy enough to think about installing this on a street car. Think is the keyword, but in reality, all I want to do is document this for the other S2k Otaku out there. This is some true nerd S2k nerd shit going on, hang on….

S2000 Toda Racing Dry Sump

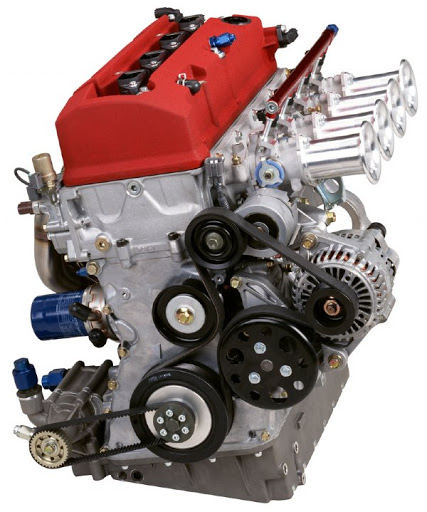

I’ve told you guys I’m a hoarder right? I was able to mock this setup on a spare blown engine I’ve had sitting around that someone gave me. The previous owner of the engine dropped a valve so, the engine needs a ton of love if I want to resurrect it, F24 stroker engine anyone? I also threw on my Toda ITBs for shits and giggles because it reminded of the Toda Racing stock photo I’ve been drooling over for years….

unnamed

Same same but different.

S2000 Toda Racing Dry Sump
Let’s start with the crank pulley. The Toda Racing F20c dry sump kit uses an OEM stock S2000 crank pulley. The pulley is machined out to fit the gear that goes to the dry sump pump.

toda racing drysump
Here is the Crank pulley exploded. You can see how the OEM crank pulley has been machined for dry sump gear.

toda racing drysump-4
There are bolts that mount from behind the crank pulley to mount the inner piece. Don’t forget to put your crank pulley bolt in before you bolt the piece in!

toda racing drysump-2
The rear, you can see all the holes where it bolts into the crank pulley

toda racing drysump-3
The front where the dry sump gear is mounted.

toda racing drysump-6
Dry sump pump gear on the crank pulley….
So the order of operation is…. Put crank pulley bolt in crank pulley, bolt in metal gear holder, (no idea what to call that thing), screw in and torque down crank pulley bolt to engine, there is a hole in it to access the crank pulley bolt. Lastly bolt in dry sump pulley and install belt at the same time to the pump.

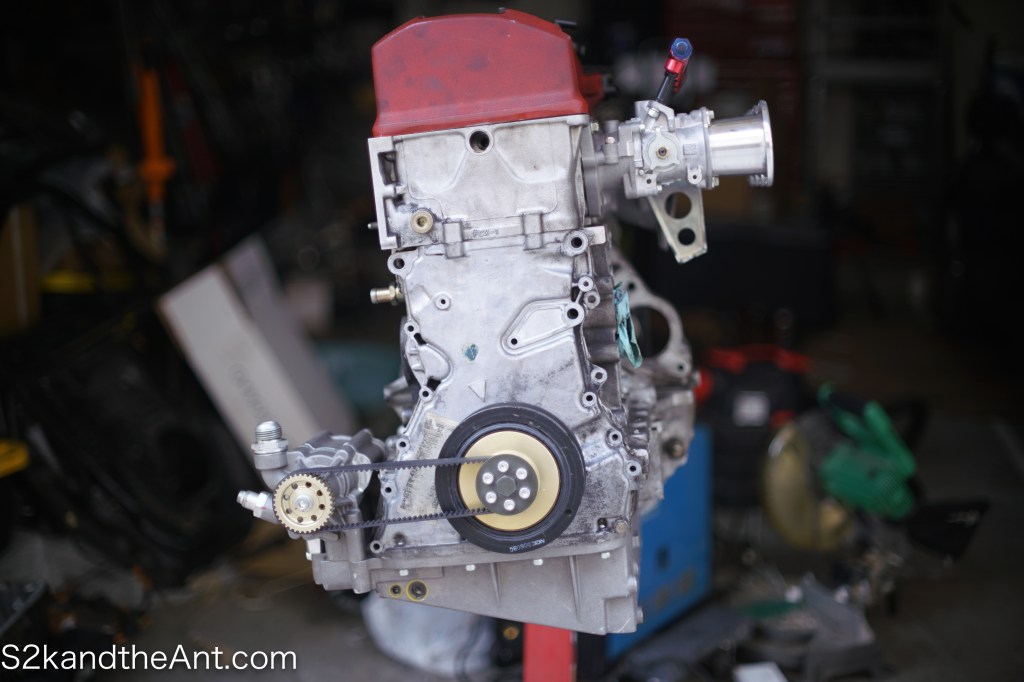

Mounted with the belt on….

S2000 Toda Racing Dry Sump

You can see how the belt runs the pump here. From what I can tell, most of the other dry sump units that toda racing produces also runs this very pump. If you were to look at their bespoke K20 Formula 4 engines or Super GT engines they all use this type of pump…. I don’t know what hole is oil-in and what hole is oil-out yet. These are things I need to figure out.

S2000 Toda Racing Dry Sump
All the bolt holes underneath the pump I have no idea what they do.

S2000 Toda Racing Dry Sump
From the pictures of the few cars that run this online, those holes below are unused.

S2000 Toda Racing Dry Sump
If we turn our attention to the oil drain bolt towards the rear of the pain, it is the same bolt used in the OEM oil pan. I love how they retained this and did not change the bolt to a different size or pitch.  They are two oil drain bolts to drain oil from the “pan.”

S2000 Toda Racing Dry Sump
What’s these 3 holes here? This is why I think this is great for a street car. No other Dry Sump Kit manufacture for the F20c has these bolt holes. This is where the bracket for the OEM AC Compressor goes. So in Theory you can run AC with this! I’m not gonna play race car driver, I love having AC in my S2k as it gets very hot in the summer, and I’m all about the hardtop 24/7 life.

S2000 Toda Racing Dry Sump
If we look at the bottom of the Dry Sump pan you can see the separate sections this pan has. Another cool things to note, This Toda Racing Dry Sump Unit is casted from magnesium. Yes, this might weigh more than other kits out in the market but I feel like this is the most thoroughly thought out kit out there, shy of like IF HPD make a dry sump kit for this like how they do for the K series, where the dry sump pump is ran off of the internal oil pump chain…… Maybe AT power would make something like that if there is enough demand?

S2000 Toda Racing Dry Sump
Turning out attention to inside the engine.  This plate is mounted to the block to divert the oil to the new sump.

S2000 Toda Racing Dry Sump

S2000 Toda Racing Dry Sump
So what’s that hole right there.  That hole is where the OEM Oil pump would pump oil to, if you were to follow that hole up the engine, you would end up at the oil filter….So that is another super super cool thing about this kit.  YOU CAN RETAIN YOUR OIL FILTER LOCATION! Yep, no need to remote mount your oil filter to run it inline like the other kits on the market.  See I told you this was extremely thought out.

S2000 Toda Racing Dry SumpO-ring on the dry sump I should replace….

S2000 Toda Racing Dry Sump
This is why I can use the OEM Oil filter location, how cool is that!

S2000 Toda Racing Dry Sump
I needed some washers to mount the engine, so I found these cam trigger gears…. apparently they are discontinued and I shouldn’t be using it like this…

S2000 Toda Racing Dry Sump
Toda ITBS looking pretty.  I made a post why these are rad…  Here

S2000 Toda Racing Dry Sump
Favorite part of the Toda Racing ITBs, the coolant breather to make burping your coolant system easier.

That’s it guys, hopefully you enjoyed the in depth look of the Toda Racing Dry Sump kit for the F20C / S2000.  I really wish there was something like this when I was searching.  There is seriously nothing out there.  Now my new issue, how the hell do I mount a dry sump tank in my car, I don’t want to put it in the trunk nor do I want to put it at the passenger footwell.  I don’t even know what size tank to buy…. that’s for me to find out.. Hopefully running by 2030 haha.
